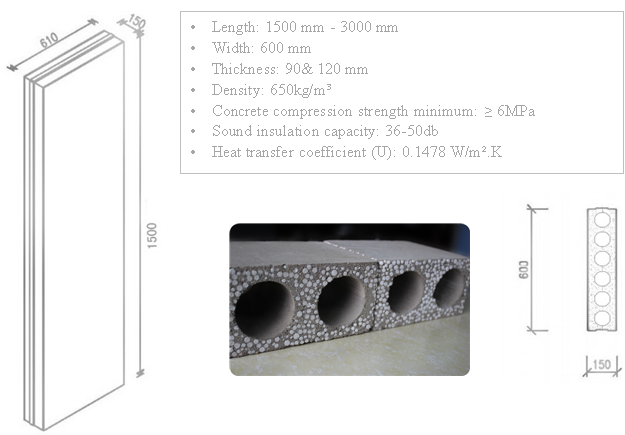

Typical Size:

    Length: 1500 mm - 3000 mm

    Width: 600 mm

     Thickness: 90& 120 mm

    Raw Material:

    Core material: Cement, EPS, Sand and etc.

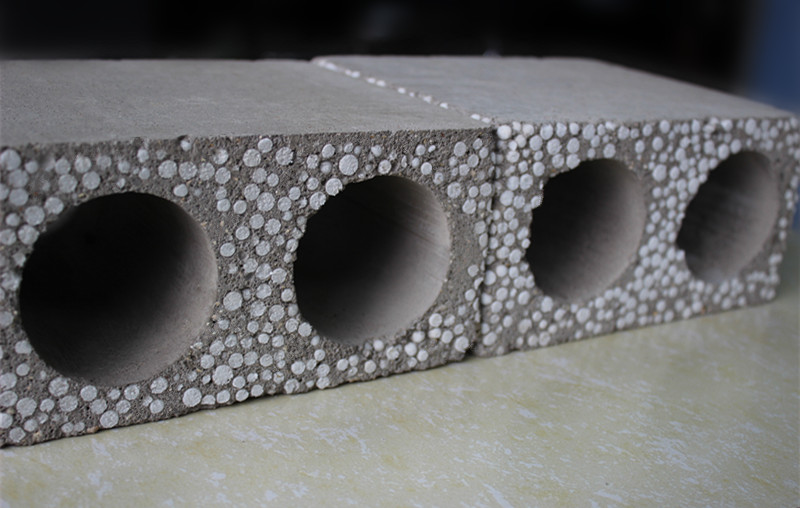

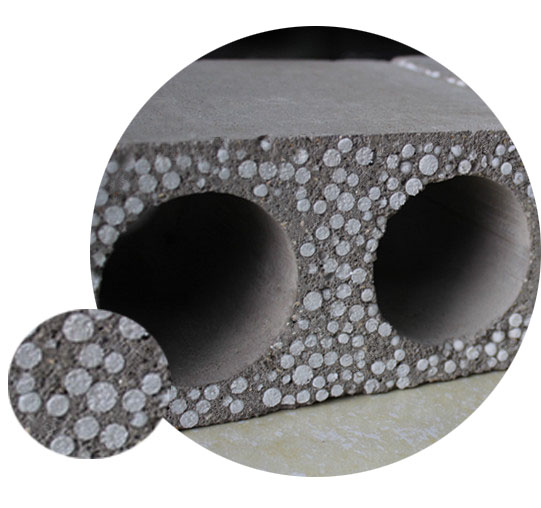

   Panel details

   Advantages

1. Lightweight: 650kg/m³, just one sixth of the brick building.

2. ECO-friendly: Energy saving, non-toxic, recommended by government.

3. Fast & Easy installation: 5 times faster than traditional brick installation.

4. Labor cost saving: fewer workers, and build more fast.

5. Warm preservation: adjust indoor temperature at a constant range.

6. Fire proof: fire proof limit of 4 hours against of 1000℃ high

    temperature.

7. Anti-seismic: earthquake resistance can reach to 8 magnitudes.

8. Long life-span: More than 70 years.

9. Water-proof and damp resistant.

10. Sound insulation and absorption.

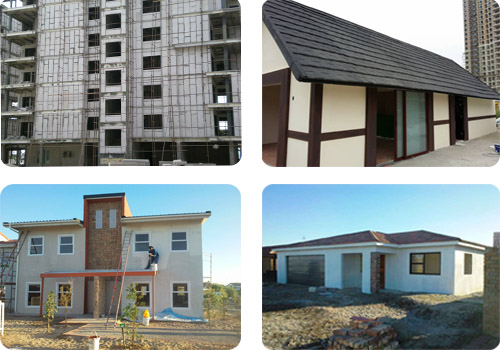

         Usage

      1. Non-load bearing wall panel for high grade house

      2. The building with higher requirement of sound proof,

          fire-proof and damp resistance.

      3. Microclimate adjustment system and passive fire protection                              system.

      4. Building at seismic area equal to or less than 8 magnitudes.

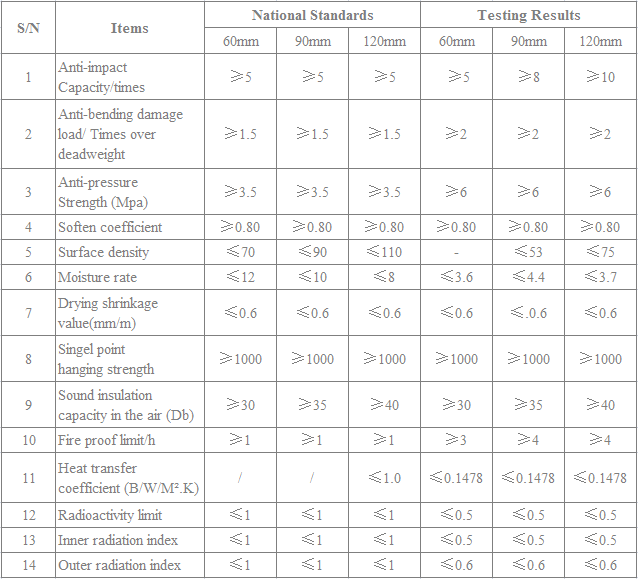

   Technical Index
