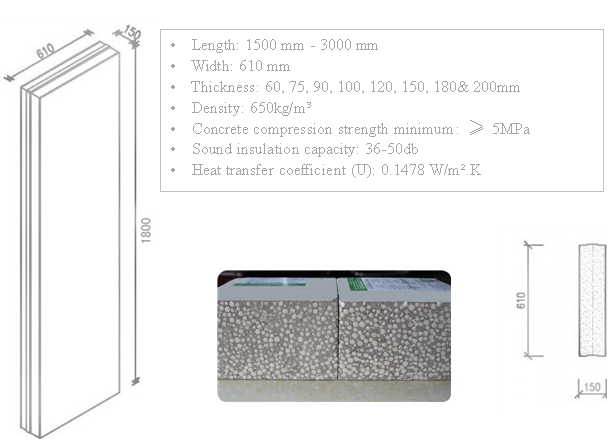

Typical Size:

    Length: 1500 mm - 3000 mm

     Width: 610 mm

     Thickness: 60, 75, 90, 100,120,150,180& 200mm

     Raw Material:

     Core material: Cement, EPS, Sand and etc.

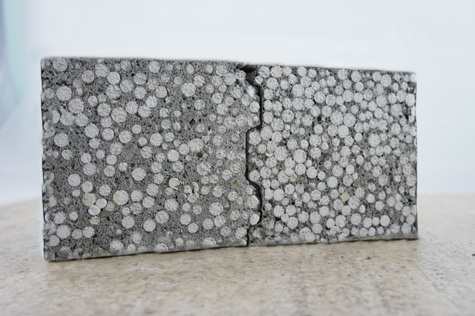

   Panel Details

   Advantages

1. Lightweight: 650kg/m³, just one sixth of the brick building.

2. ECO-friendly: Energy saving, non-toxic, recommended by

    government.

3. Fast installation: 5 times faster than traditional brick installation.

4. Labor cost saving: fewer workers, and build more fast.

5. Warm preservation: adjust indoor temperature at a constant range.

6. Fire proof: 4 hours against of 1000℃ high temperature.

7. Anti-seismic: earthquake resistance can reach to 8 magnitudes.

8. Long life-span: More than 70 years.

9. Water-proof and damp resistant.

10. Sound insulation and absorption.

          Usage

      1. Non-load bearing wall panel for high grade house

      2. The building with higher requirement of sound proof,

          fire-proof and damp resistance.

      3. Microclimate adjustment system and passive fire

          protection system.

      4. Building at seismic area equal to or less than 8  magnitudes.

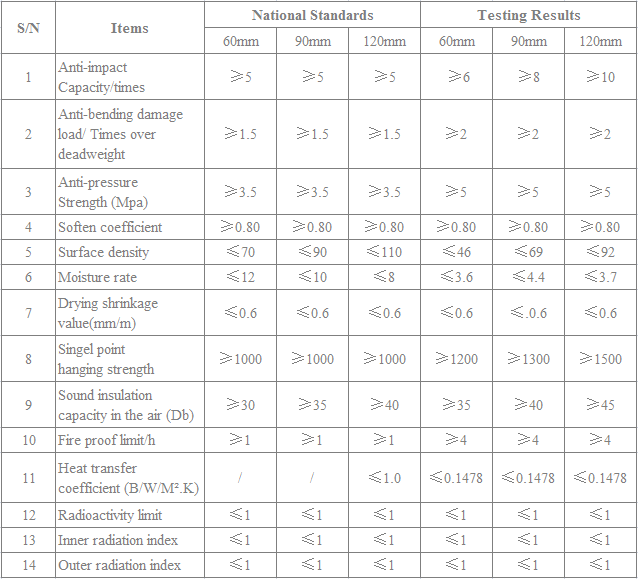

   Technical Index
